Setpoint Parameters with Built-In Limits
Create configurable numerical limits for process control. Define setpoint parameters with minimum and maximum bounds, default values, and engineering units. Generate the tag definitions and logic to enforce these limits in your PLC program.
How It Works
Define

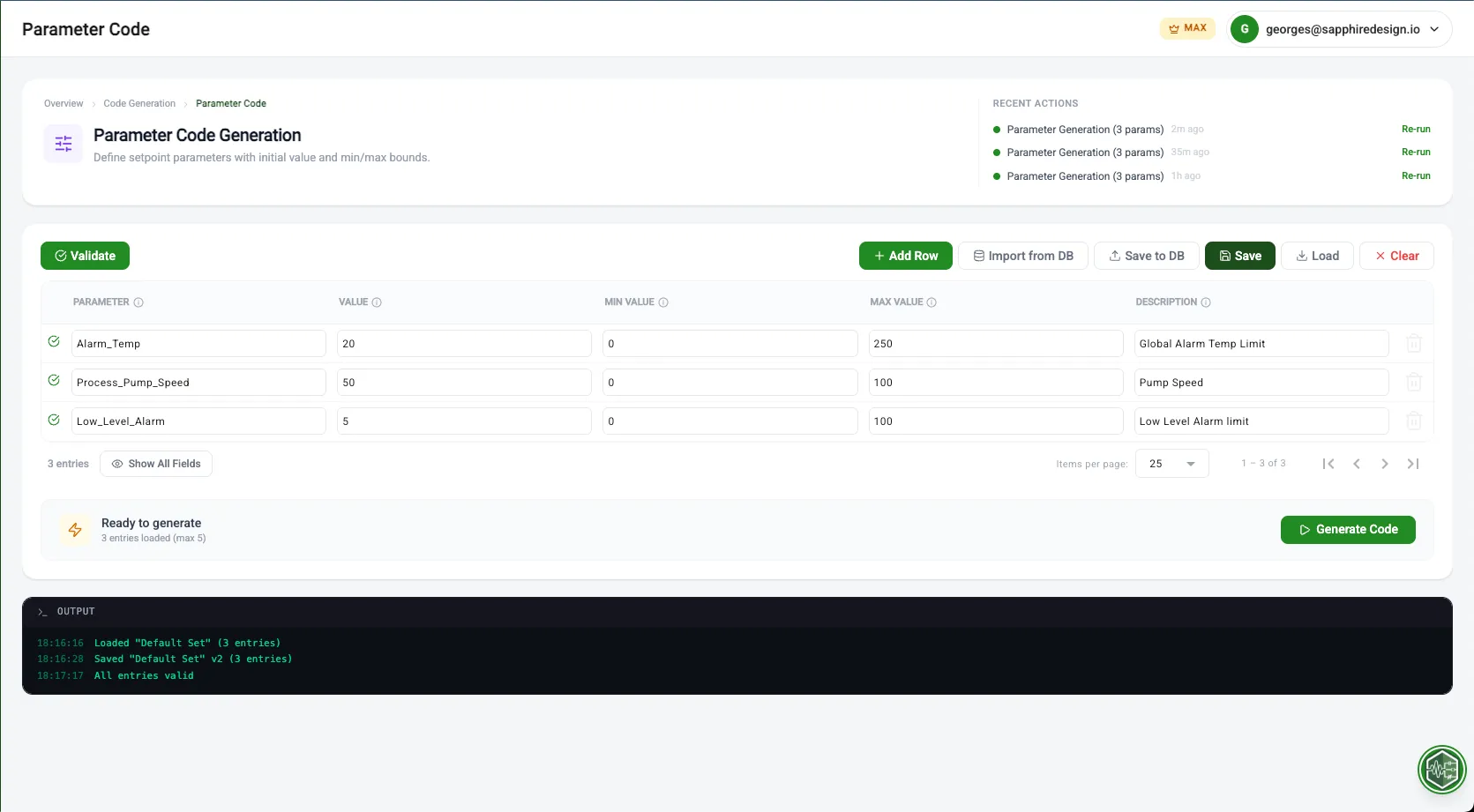

Define parameters with limits and defaults
Configure
Configure engineering units and scaling
Generate

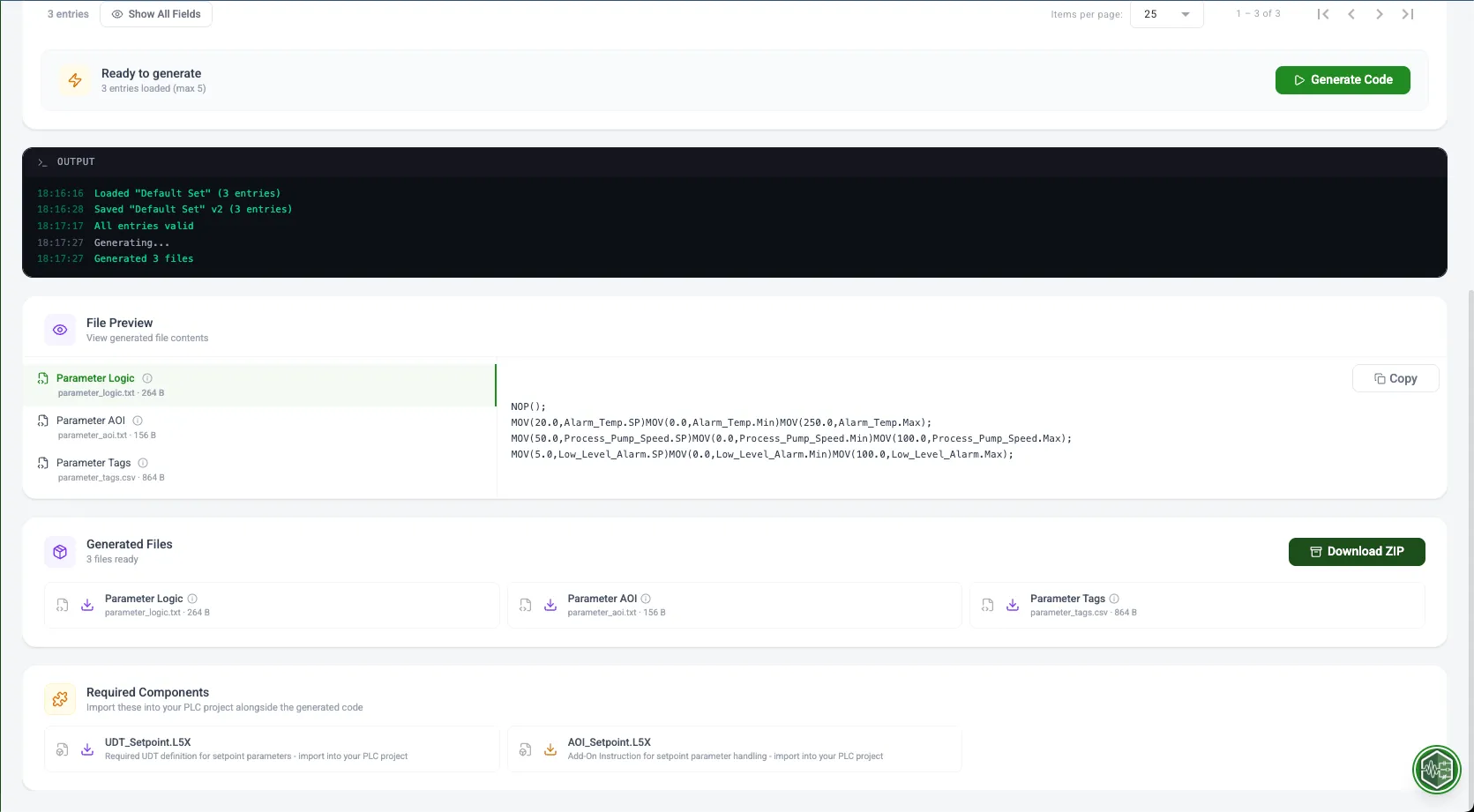

Generate parameter logic and tag files
Built for engineers like you
Setting up 200+ tunable setpoints for a water treatment plant with strict regulatory limits
Define all parameters with regulatory min/max bounds, generate code that prevents out-of-range entries.
Adding 50 new PID tuning parameters to an existing project before startup
Upload parameter list, generate MOV instructions and tag definitions, import into existing project.
Manually creating and maintaining hundreds of setpoint parameters with bounds checking.
What PLCflow Does
- Define parameters with limits and defaults
- Configure engineering units and scaling
- Generate parameter logic and tag files
Before & After
See the difference PLCflow makes on a real project.
- Create MOV instructions and compare blocks for each parameter manually
- Forget one min/max check and an operator enters an impossible setpoint
- No consistent pattern across hundreds of parameters
- Engineering units tracked in a separate spreadsheet
- Define parameters in a table with defaults, limits, and units
- Generate all bounds enforcement logic automatically
- Every parameter protected with consistent MOV patterns
- Export tag definitions with units attached
Engineered for Complexity
Purpose-built capabilities for industrial-scale projects.
Bounds Enforcement
Every parameter gets min/max limits enforced in PLC logic. No operator can accidentally enter an out-of-range setpoint.
Engineering Units
Attach units (degF, PSI, %, RPM) and scaling to each parameter for clear HMI integration.
Spreadsheet Import
Define parameters in Excel with columns for name, default, min, max, and units. Generate all logic at once.
Try Parameter Code with a 14-day Pro trial
No credit card required. Import your first file and generate production-ready output in under a minute.
