Clone Logic Across Lines and Zones
Duplicate routines across production lines, zones, or equipment sets. Define your master routine, specify variants with tag name substitutions, and let PLCflow create all copies with correct tag references. Regex-powered find-and-replace ensures nothing gets missed.
How It Works

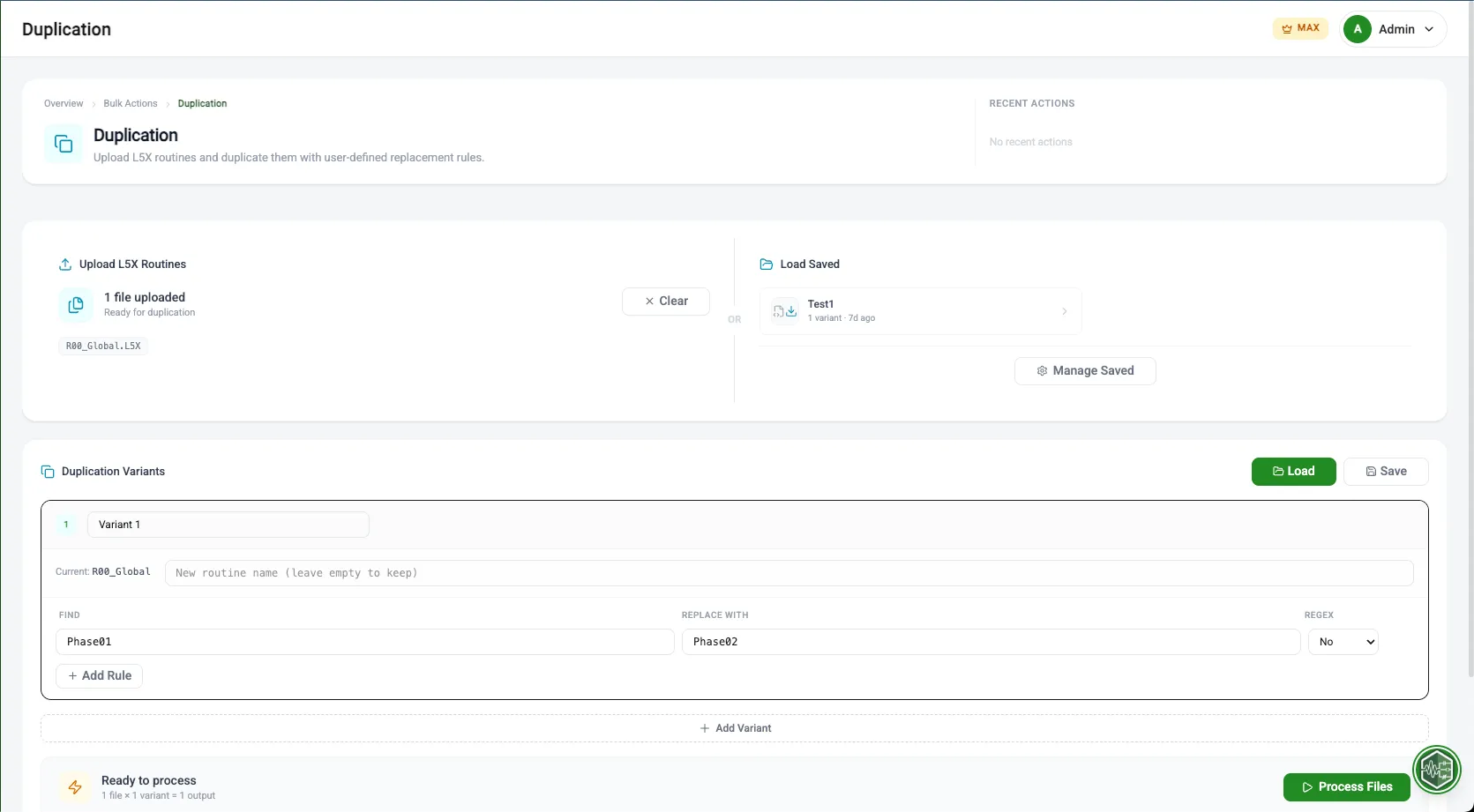

Upload
Upload master routine L5X file
Define Variants
Define variants and tag substitutions

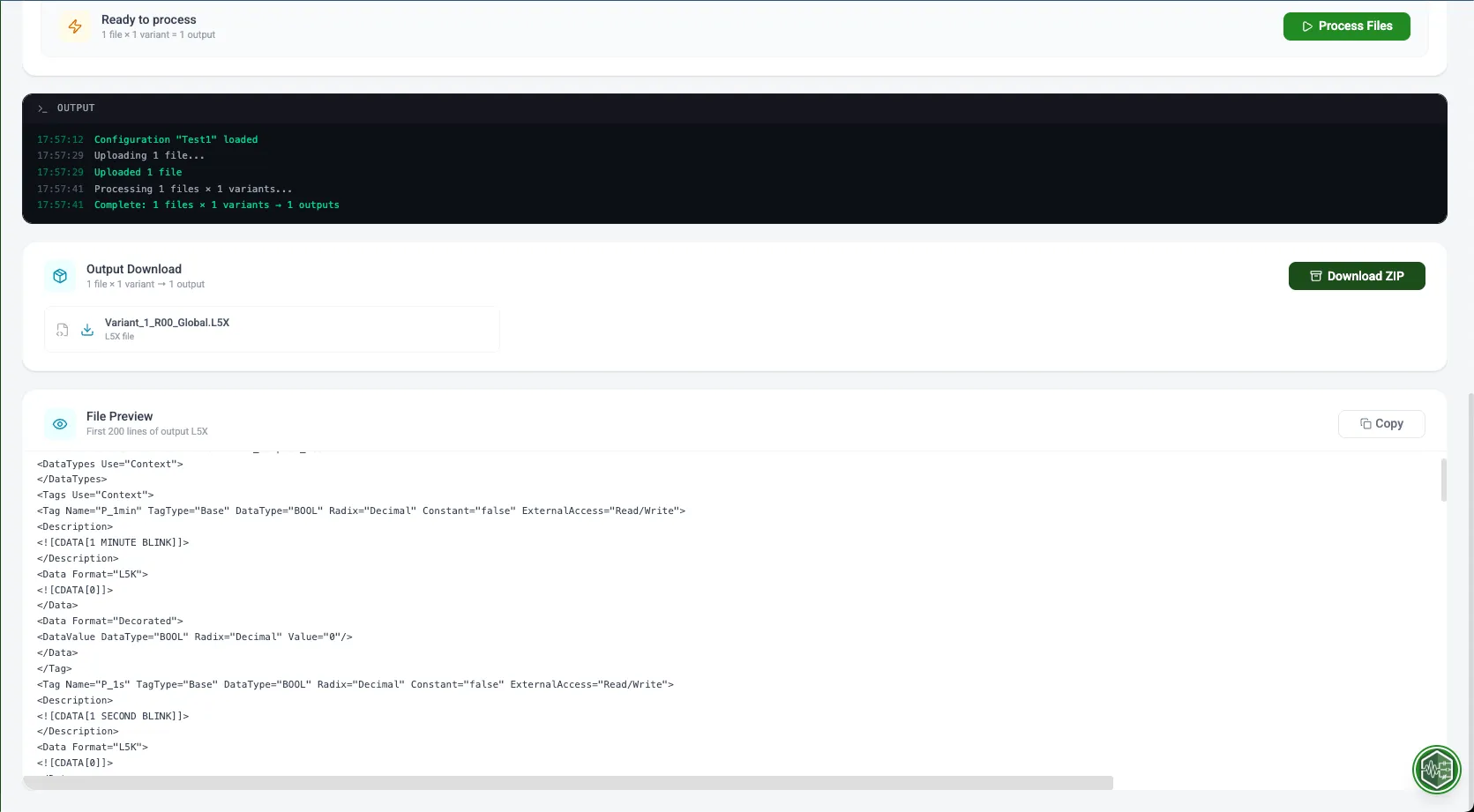

Generate
Generate all duplicated routines
Built for engineers like you
Cloning conveyor control logic across 12 identical packing lines in a new distribution center
Upload master routine, define 12 variants with line-specific tag prefixes, generate all routines.
Adding a new production zone (Zone D) with identical logic to Zone A
Upload Zone A routines, define Zone_A to Zone_D replacement, generate and import.
Copy-pasting routines across 10+ production lines, missing tag replacements.
What PLCflow Does
- Upload master routine L5X file
- Define variants and tag substitutions
- Generate all duplicated routines
Before & After
See the difference PLCflow makes on a real project.
- Export routine, open in text editor, find-and-replace tag names
- Hope you caught everything, repeat for each production line
- One missed reference = one commissioning headache
- No way to verify all substitutions were applied
- Upload master routine, define zone/line variants
- Specify replacement rules with regex support
- Preview all outputs with reference validation
- Download all routines, zero missed references guaranteed
Engineered for Complexity
Purpose-built capabilities for industrial-scale projects.
Regex-Powered Replacement
Full regular expression support ensures every tag reference, comment, and description gets updated. Nothing gets missed.
Multi-Variant Output
Define 2, 10, or 50 variants from a single master. Each gets its own fully-updated routine with correct references.
Reference Validation
PLCflow verifies all substitutions were applied and flags any unresolved references before export.
Try Duplication with a 14-day Pro trial
No credit card required. Import your first file and generate production-ready output in under a minute.
