AI Documentation for Inherited Code
Automatically generate clear, accurate comments for your ladder logic routines. Upload an L5X file and the AI analyzes each rung to produce meaningful documentation. Preview and review before applying - turn inherited programs into maintainable assets.
How It Works

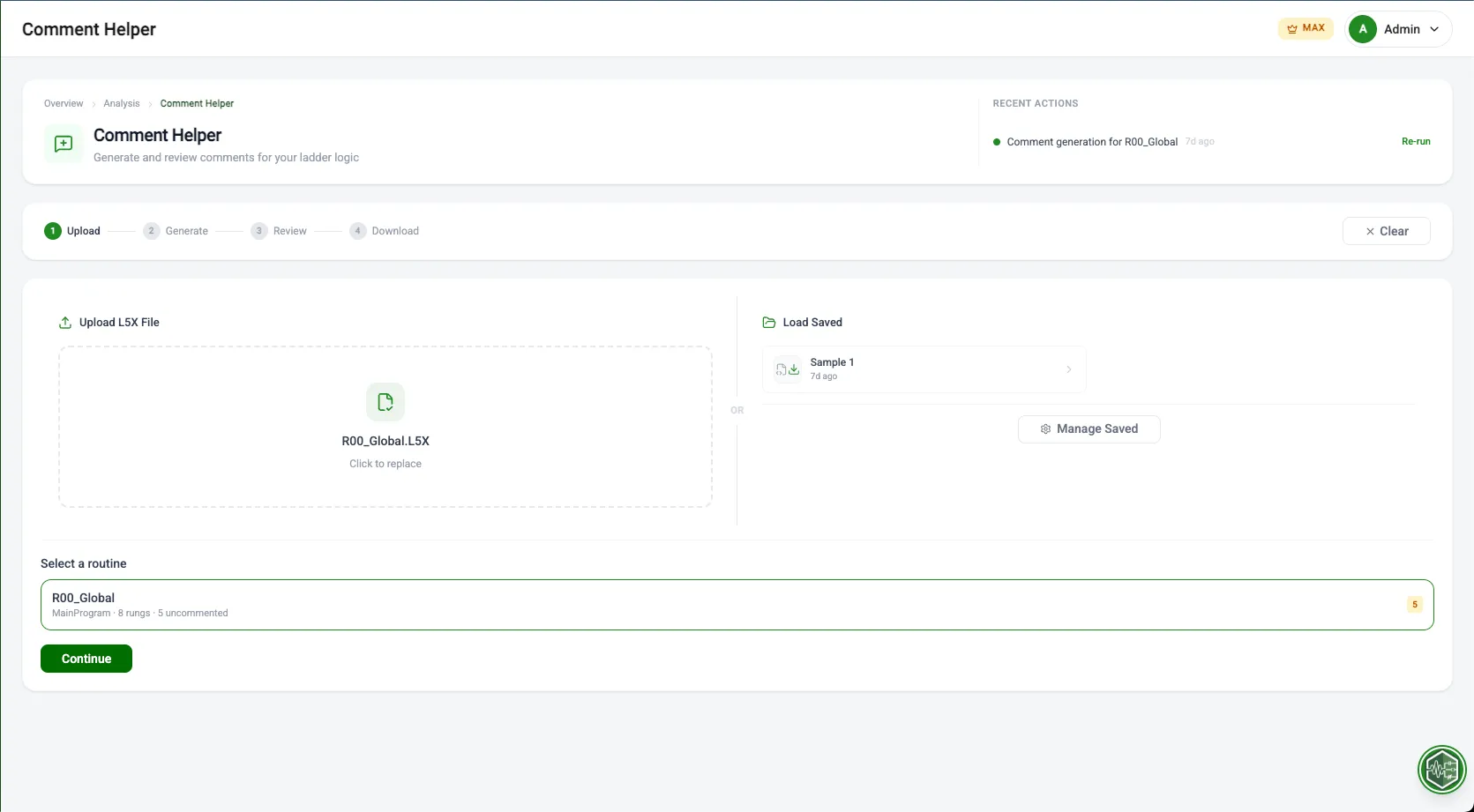

Upload
Upload L5X file with undocumented routines
Review
Review AI-generated comments
Export
Export documented version
Built for engineers like you
Inherited a 15-year-old program with 200 routines and zero comments. Previous engineer retired.
Upload L5X, generate AI comments for every rung, finally understand what the program does.
Handing off a project to the client's maintenance team, need to document every routine before delivery
Run Comment Helper, review and approve AI suggestions, deliver a fully commented L5X.
Inherited programs with 200 routines and no comments.
What PLCflow Does
- Upload L5X file with undocumented routines
- Review AI-generated comments
- Export documented version
Before & After
See the difference PLCflow makes on a real project.
- Read each rung, figure out what it does, type a comment
- Repeat 500 times for a full program
- For inherited code, understanding often takes longer than rewriting
- New team members can't maintain what they don't understand
- Upload L5X, AI analyzes every rung automatically
- Review suggested comments with confidence scores
- Accept, edit, or reject individually
- Export a fully documented program ready for Studio 5000
Engineered for Complexity
Purpose-built capabilities for industrial-scale projects.
Rung-Level Analysis
AI reads each rung's instruction sequence and generates a plain-English comment explaining the logic's purpose and behavior.

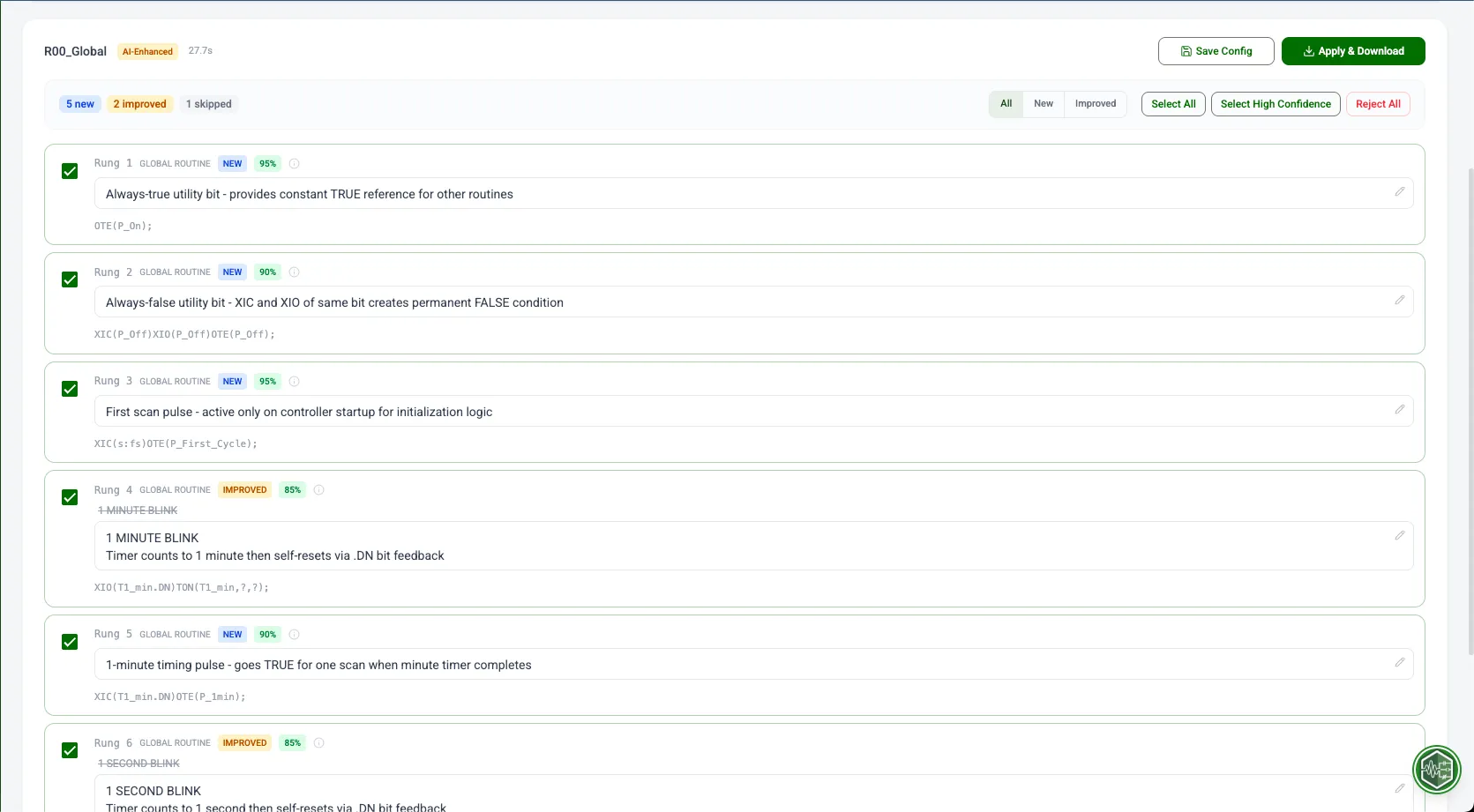

Review Before Apply
Preview every generated comment before committing. Accept, edit, or reject on a per-rung basis with confidence scores.
Export Documented L5X
Download a new L5X file with all approved comments embedded. Import directly back into Studio 5000.
Try Comment Helper with a 14-day Pro trial
No credit card required. Import your first file and generate production-ready output in under a minute.
